Arbor for Lathes & Drills - 1MT / 2MT / 3MT

    £12.00 Inc. VAT

    Quality arbors for lathes and drilling machines, available in a range of different morse taper sizes.

    More details

    product description

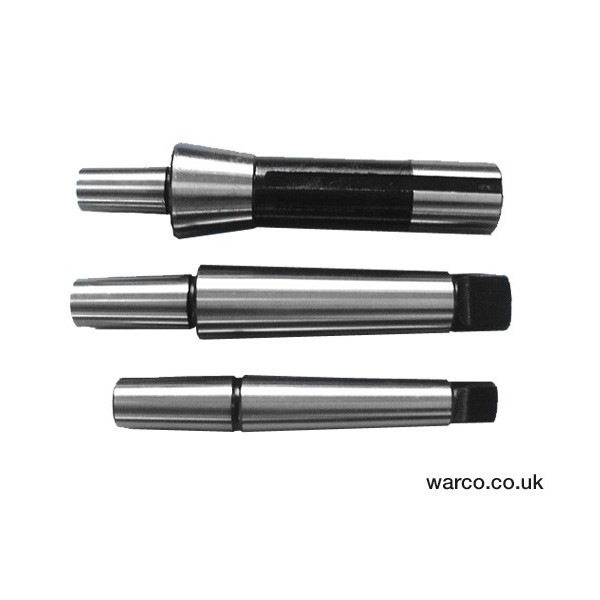

    Arbor for Lathe & Drill - 1MT, 2MT & 3MT

    Range of quality arbors for use in morse taper machines, in a variety of different sizes.

    • Very useful adapter for lathes and drilling machines.
    • Idea for fitting a drill chuck to your lathe tailstock for example.
    • We have arbors available to match all our drill chucks and machines.
    • Select the  required type from the drop down list above.

    Guide to lathe compatibility can be found below.

    Types available

    Item No.

    Machine taper

    Chuck taper

    Tang

    5579

    1MT

    B12

    With

    8133

    1MT

    B16

    With

    9540

    2MT

    B12

    Without

    8119

    2MT

    B12

    With

    8139A

    2MT

    B16

    With

    8140A

    2MT

    B18

    With

    8148A

    3MT

    B16

    With

    8141A

    3MT

    B18

    With

    Drill chucks to suit these arbors available on these pages: Key drill chucks / Keyless drill chucks

    Recommended arbors to fit Warco lathes

    • WM 150

    We recommend 1MT B12 Abor (Item No. 5579).
    [Please note that while the alternative 1MT arbor (B16 / Item No. 8133) will also fit, it's a bit on the lengthy side for the WM 150.]

    • Mini Lathe

    We recommend 2MT B12 Arbor (Item No. 9540 or 8119)
    If you are using the larger B16 chuck, select 2MT B16 Arbor (Item No. 8139A).

    • WM 180, WM 240, WM 240B, WM 250, WM 280

    We recommend 2MT B16 Arbor (Item No. 8139A).
    For larger B18 chuck, select 2MT B18 (8140A).

    • GH1236, GH1322, GH1330, GH1440

    We recommend 3MT B16 Arbor (Item No. 8148A).
    For B18 chuck, 3MT B18 (8141A).

    More information

    • To select the correct arbor to match a particular drill chuck, the key thing is that the arbor taper matches that of the drill chuck. For example, a B12 drill chuck requires a B12 arbor. A B12 drill chuck would not be compatible with a B16 arbor.
    • The tang column in the table above refers to an extended part of the arbor that enables quicker ejection. The advantage of going without a tang on Item No. 9540 (suitable for the Mini Lathe) is that it reduces the length, which is handy on smaller lathes.
