New Milling Slide Vice - 86mm Jaws

Milling Slide Vice - Large

    9360

    £42.00 Inc. VAT

    product description

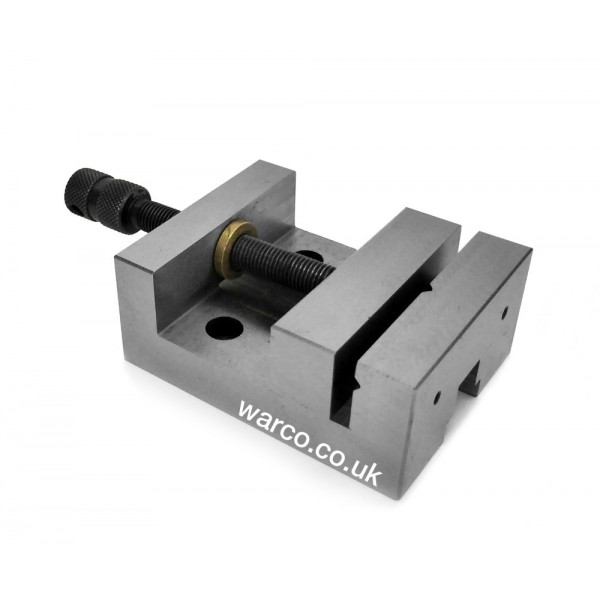

    Milling Slide Vice - Larger Design, 86mm Jaws

    Suitable for horizontal or vertical use

    • Bronze bush bearing to leadscrew.
    • Vertical and horizontal vees machined in fixed jaw.
    • Fixed jaw features both vertical and horizontal vees for maximum work holding flexibility.
    • Vice can be used as a separate item in either vertical or horizontal positions.
    • Ideal for fitting to a range of different vertical slides on lathes.
    • Supplied with fixing screws.



    Dimensions

    • Jaw width - 86mm
    • Jaw opening - 43mm
    • Distance between mounting holes - 52mm
    • Height when horizontal - 46mm
    • Overall size - 112mm x 86mm
    • Weight - 2.3kg



    Suitable for mounting on the following vertical slides



    Similar milling slide vice with smaller jaw size available here



    Price includes mainland UK delivery and VAT at 20%.
