4 Jaw Independent Chuck & Reversible Jaws

High quality independent lathe chucks. Available in 80mm, 100mm, 125mm and 160mm sizes.

More details

On sale On sale!
£50.00 Inc. VAT

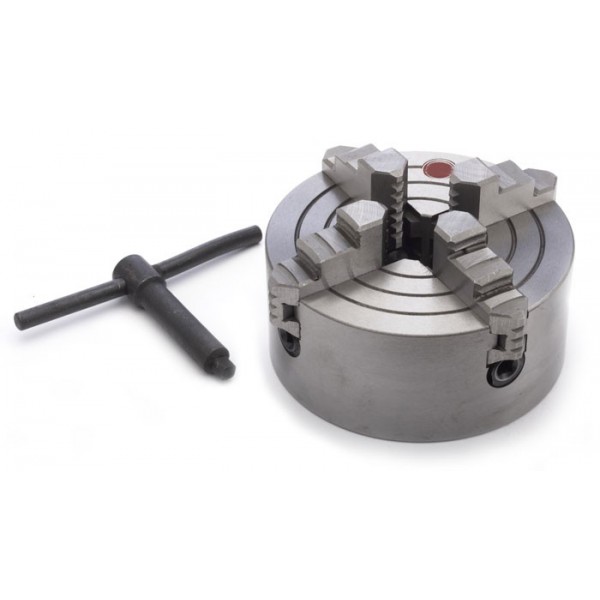

4 Jaw Independent Lathe Chucks with Reversible Jaws


  • Exceptionally high quality 4 jaw lathe chucks.
  • Very well engineered throughout.
  • Produced to DIN 6350 standard.
  • With recess for back plate mounting.
  • Complete with reversible jaws.
  • Chuck key included



Sizes available:

  • 80mm (Item No. 8043)
  • 100mm (Item No. 8044)
  • 125mm (Item No. 8045)
  • 160mm (Item No. 8046)



Dimensions:



Table 1:

Item No. Dia (mm) D1 (mm) D2 (mm) D3 (mm) H (mm) H1 (mm)
8043 80 55 66 22 58 42
8044 100 72 84 25 77 54
8045 125 95 108 30 78 56
8046 160 165 95 45 96.5 65





Table 2:

Item No. h (mm) z-d Weight (kg) A-A1 (mm) B-B1 (mm)
8043 3.5 4-M6 2 5-35 35-80
8044 4 4-M8 3.2 6-45 40-100
8045 4.5 4-M8 5 7-57 48-125
8046 5 4-M10 5.8 8-80 50-160



Price on these affordable lathe chucks includes VAT and UK mainland delivery.
